저번 포스팅에서는 그리드를 선언하고 작성하는 방법에 대해서 알아보았다.
이번에는 템플릿 레이아웃에 대하여 알아보도록 하자!
네모네모 블록쌓기 말고, 좀 더 다양한 형태의 레이아웃을 짜고 싶을 땐 어떻게 하면 좋을까?
1. grid-line
각 아이템의 위치와 크기를 조정하는 속성이다.

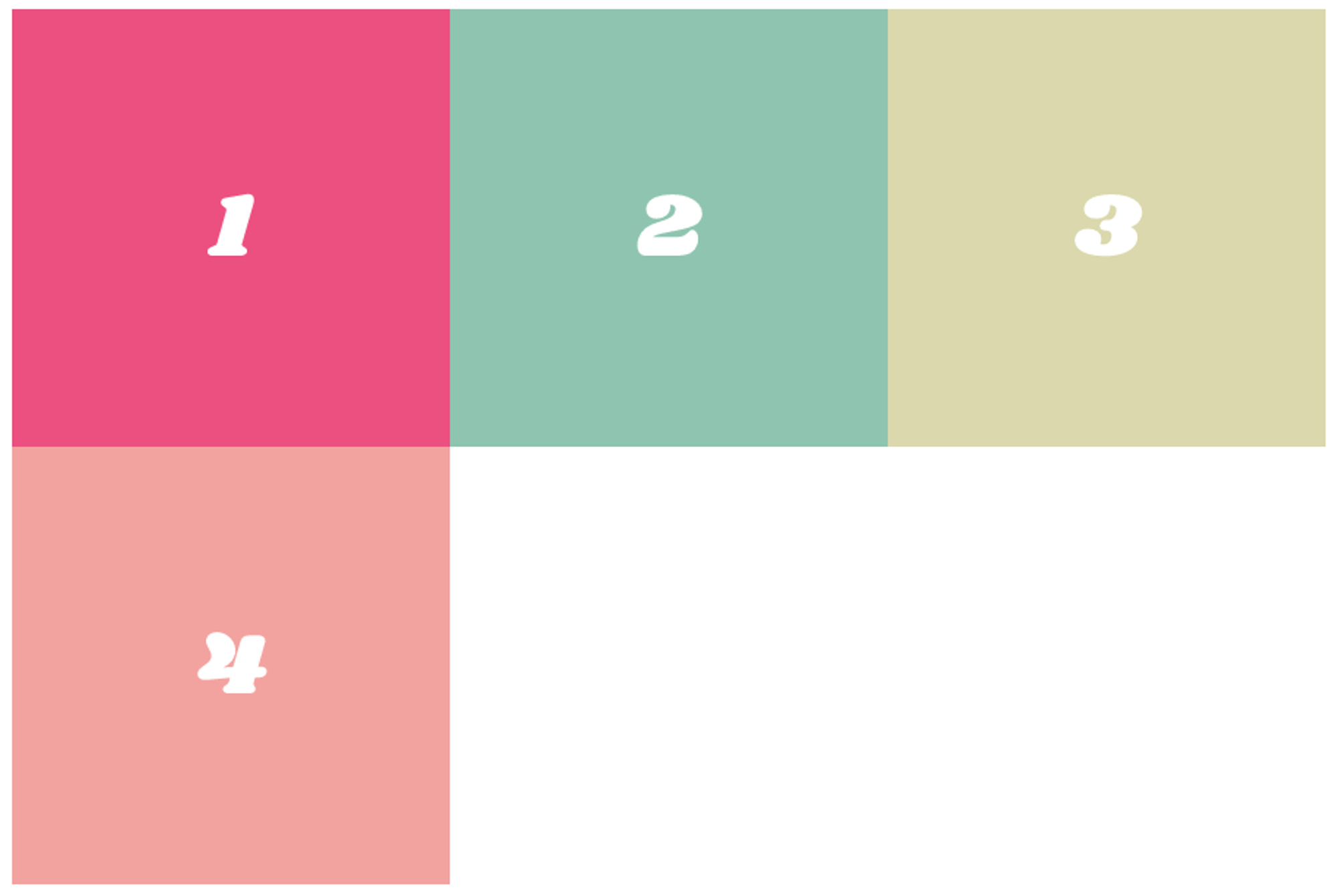

아이템이 4개 있는 컨테이너에게 column과 row를 지정해 주었다.
.container {
display: grid;
grid-template-columns: 150px 150px 150px;
grid-template-rows: 150px 150px;
}

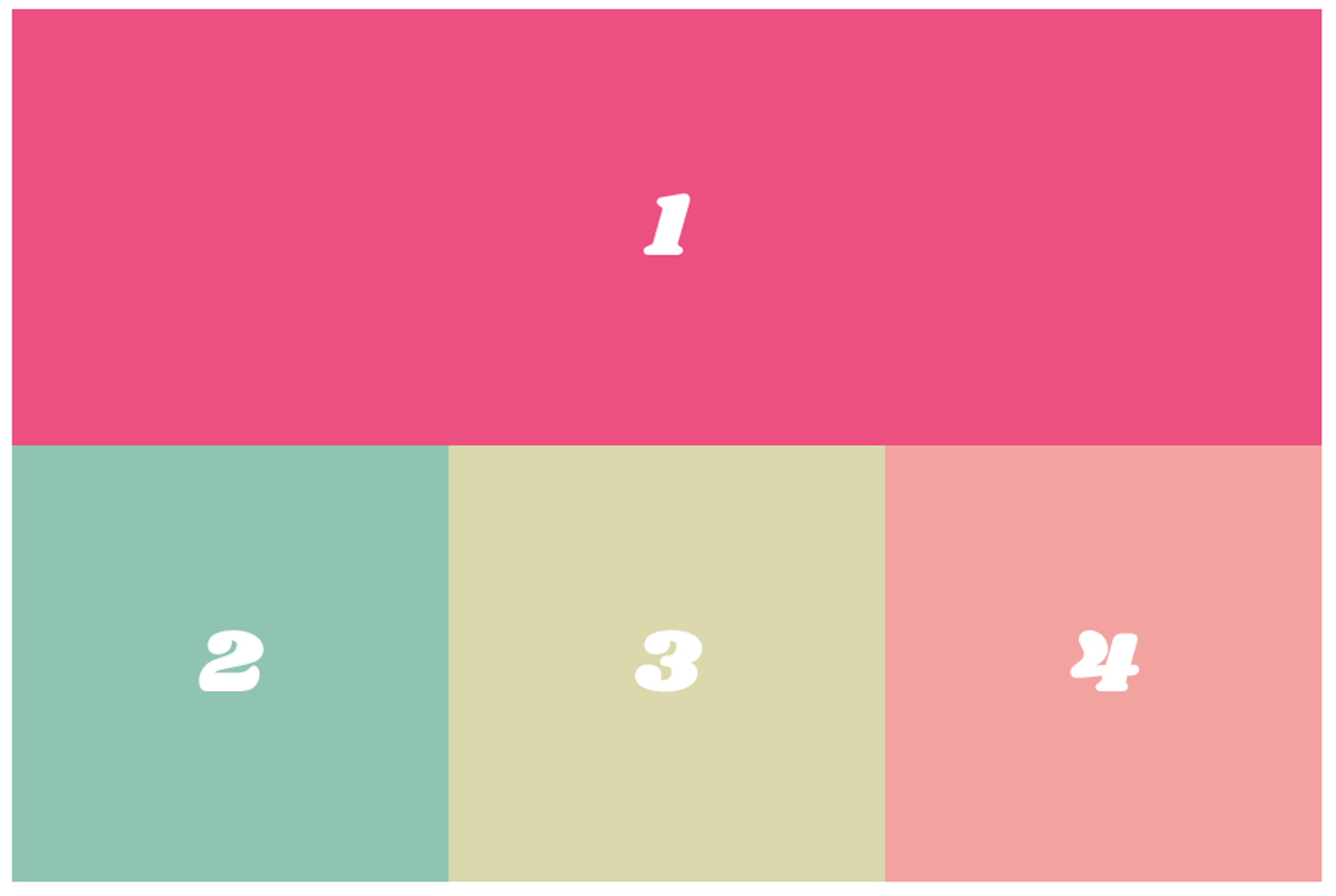

그런 다음 start와 end를 시용해 첫 번째 아이템이 1에서 시작해서 4에서 끝나도록 아래와 같은 속성을 추가하였다.
.item1 {
grid-column-start: 1;
grid-column-end: 4;
}

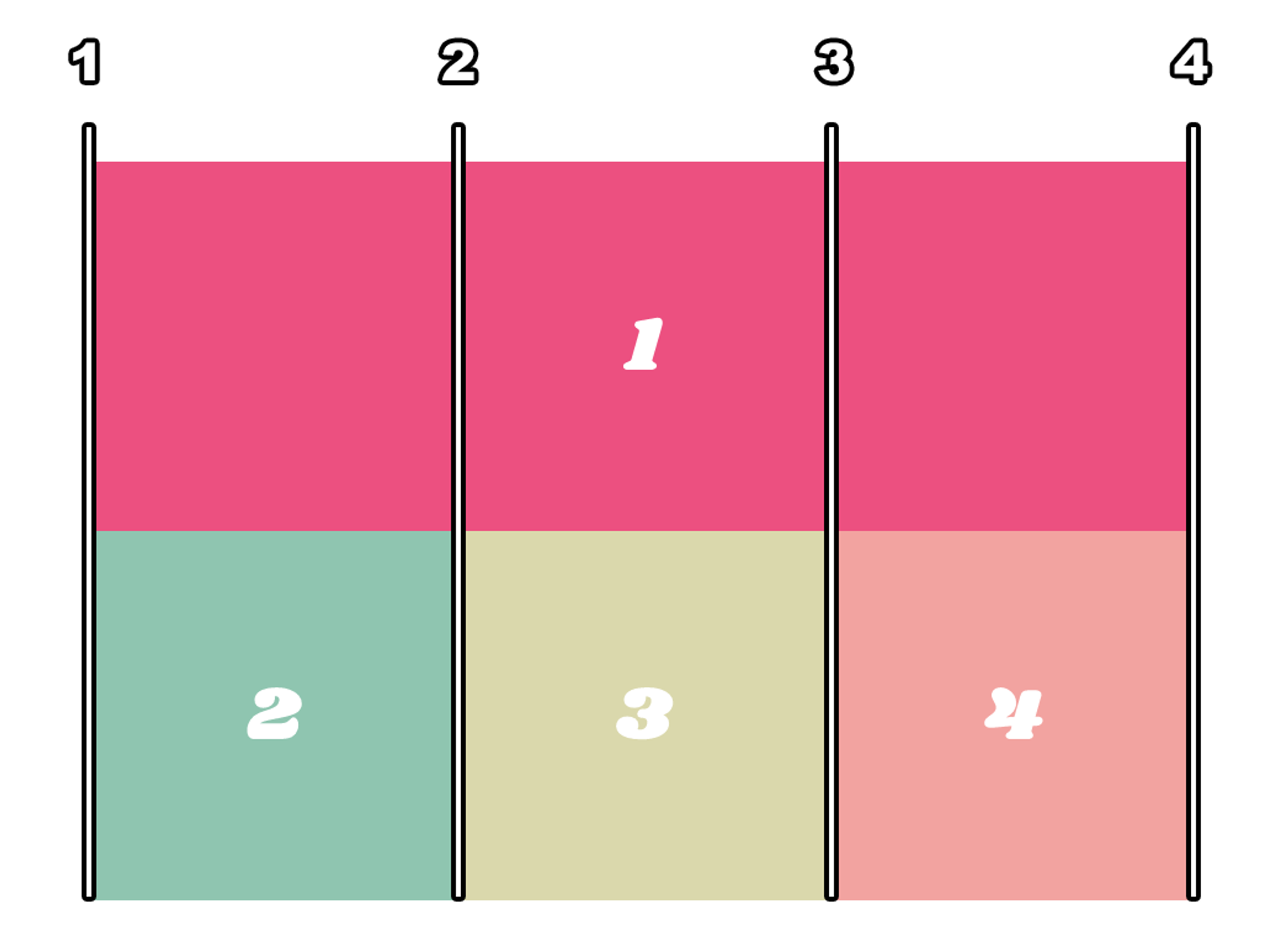

그런데 column은 세 개인데 end의 4는 어디서 나온 걸까?
여기서의 숫자는 정확히는 그리드 라인(Grid Line)을 가리킨다. 위 그림을 보면 item1이 그리드 라인 1에서 시작해 4에서
끝나도록 설정했다는 것을 알 수 있고 item2와 item3은 밑으로 밀려난 것도 볼 수 있다.
2. span
끝 지점을 지정하는 게 귀찮다고 한다면, span을 이용해 column 넓이를 지정할 수도 있다.
span을 사용하여 더 간단하게 item4는 2만큼, item6은 3만큼 늘어나도록 하였다.
.container {
display: grid;
grid-template-columns: repeat(3, 1fr);
}
.item4 {
grid-column-end: span 2;
}
.item6 {
grid-column-end: span 3;
}

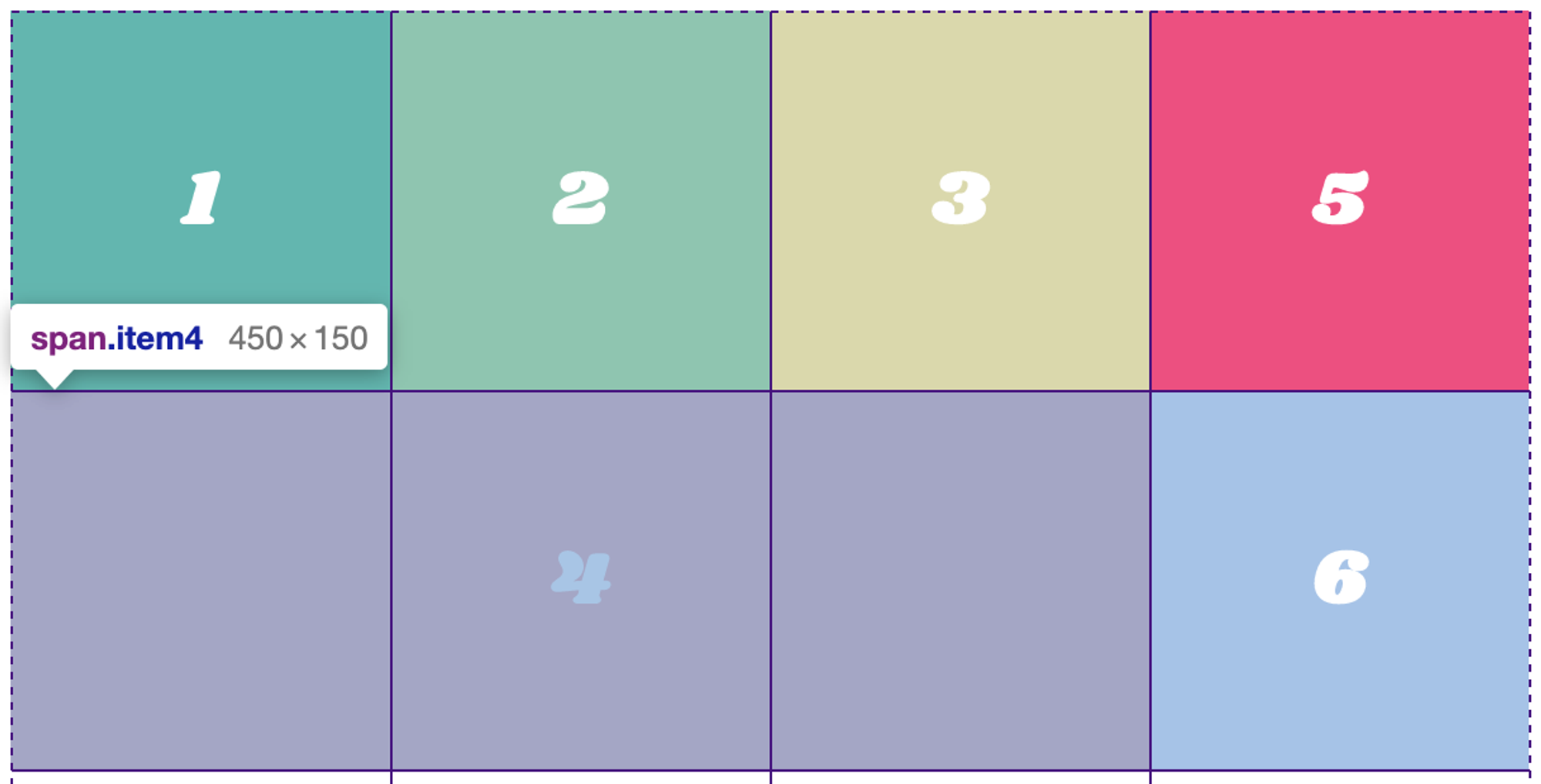

row 역시 마찬가지로 grid-row-start와 grid-row-end를 지정할 수 있다.
.container {
display: grid;
grid-template-columns: repeat(4, 1fr);
grid-template-rows: repeat(2, 100px);
}
.item4 {
grid-row-start: 2;
grid-column-end: span 3;
}

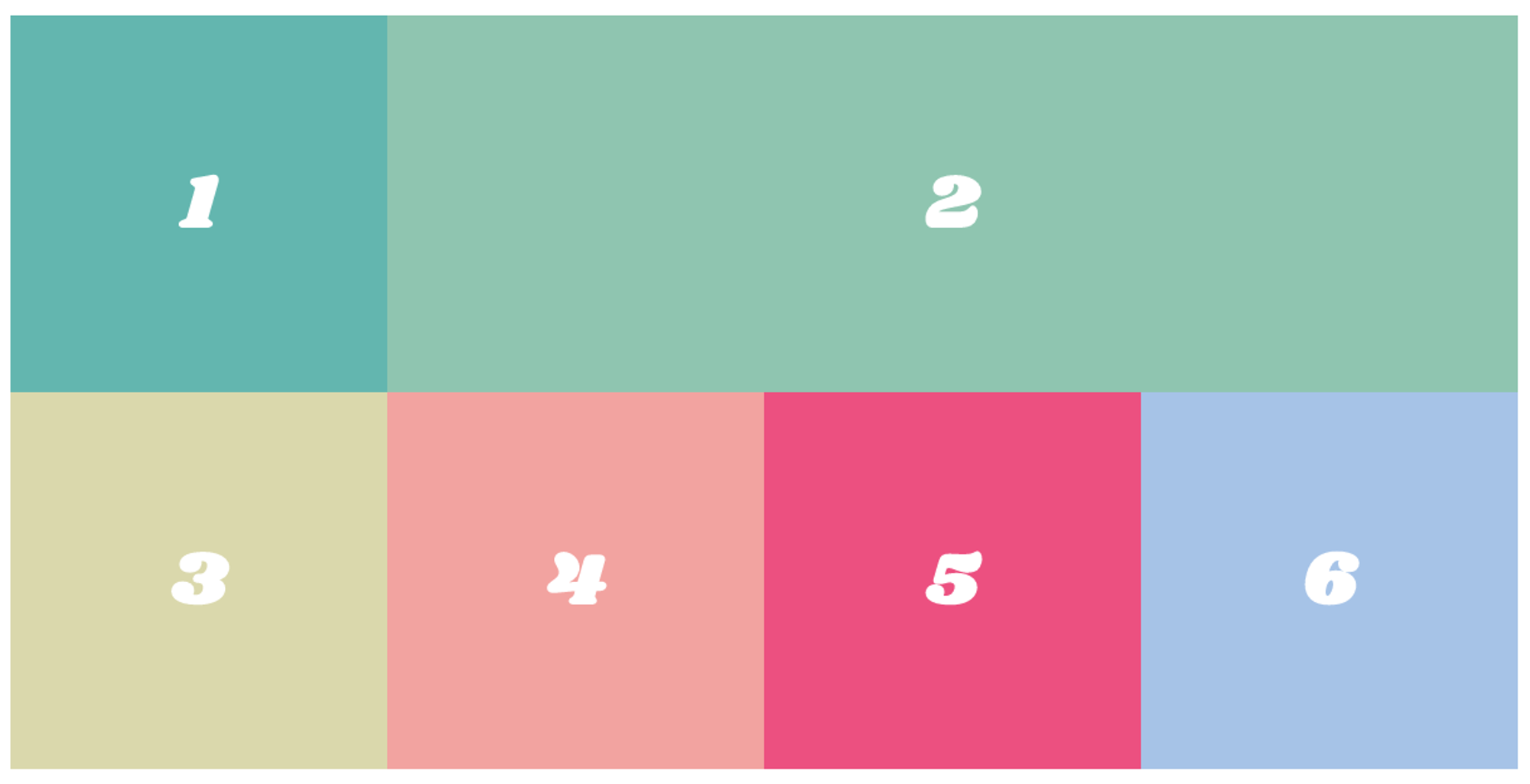

3. grid-column, grid-row
span보다 더 간단한 방법도 있는데 grid-column 속성 하나에 다 때려쓰는 방법이다.
형식은 간단하다. 아래 코드에서 grid-column: 2 / 5;에 start는 2고 end는 5를 의미한다.
만약, grid-column: 3 / span 3; 이면 라인 3에서 시작해서 3칸을 차지하게 될것이다.
.container {
display: grid;
grid-template-columns: repeat(4, 1fr);
}
.item2 {
grid-column: 2 / 5;
}

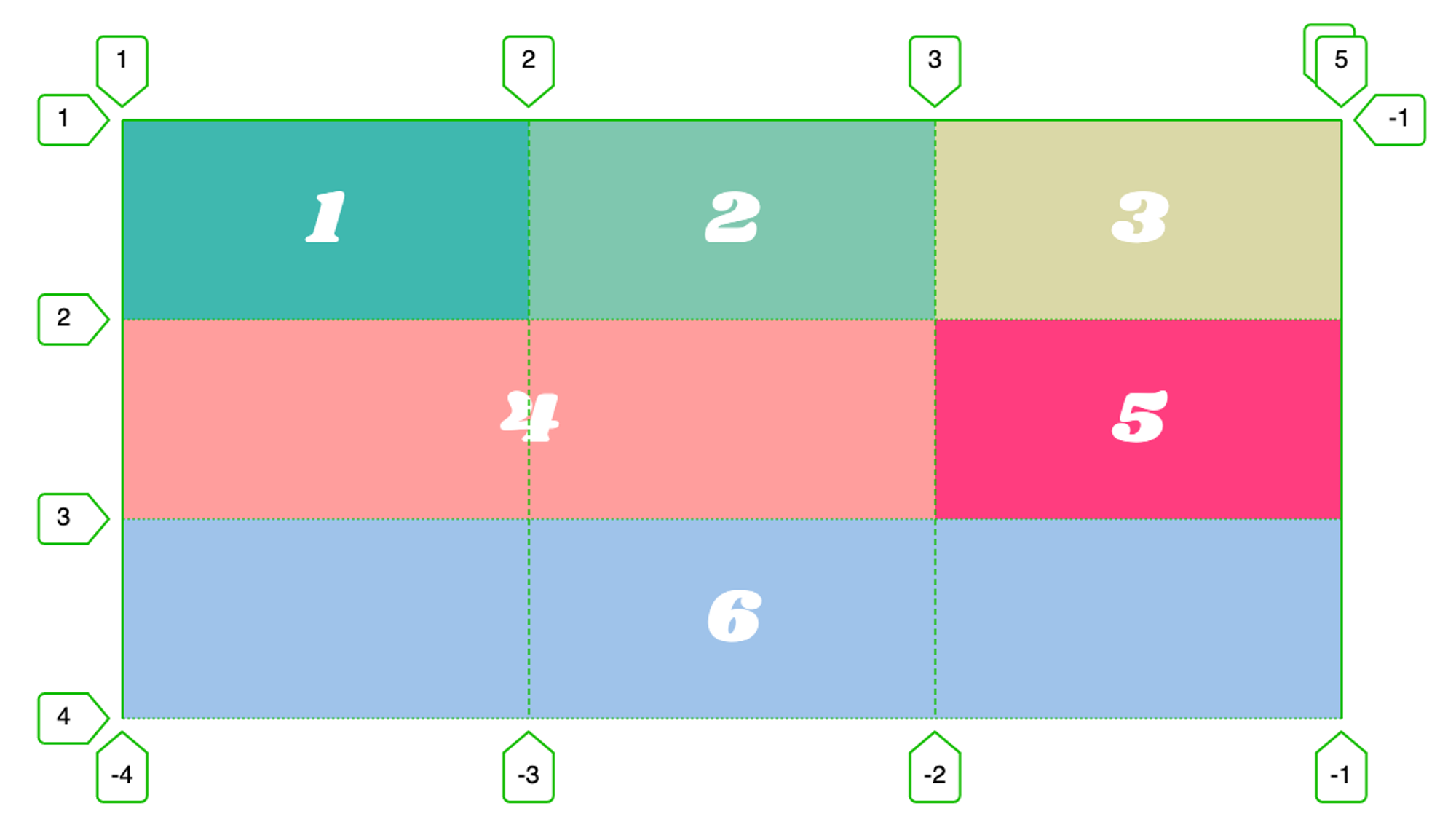

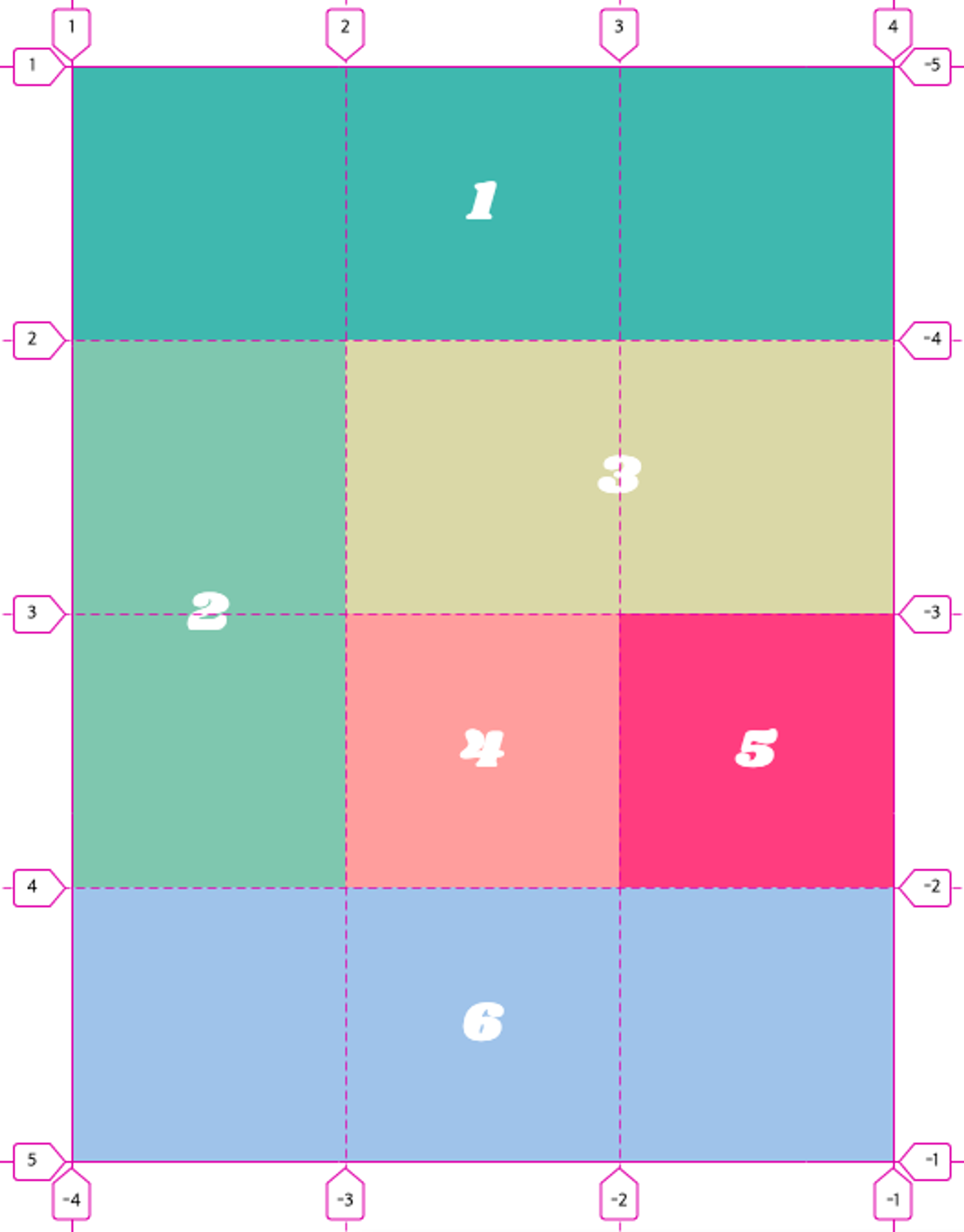

지금까지 배운 걸 응용한다면 이런 레이아웃도 만들 수 있다.
<div class="container">
<span class="item item1">1</span>
<span class="item item2">2</span>
<span class="item item3">3</span>
<span class="item item4">4</span>
<span class="item item5">5</span>
<span class="item item6">6</span>
</div>
